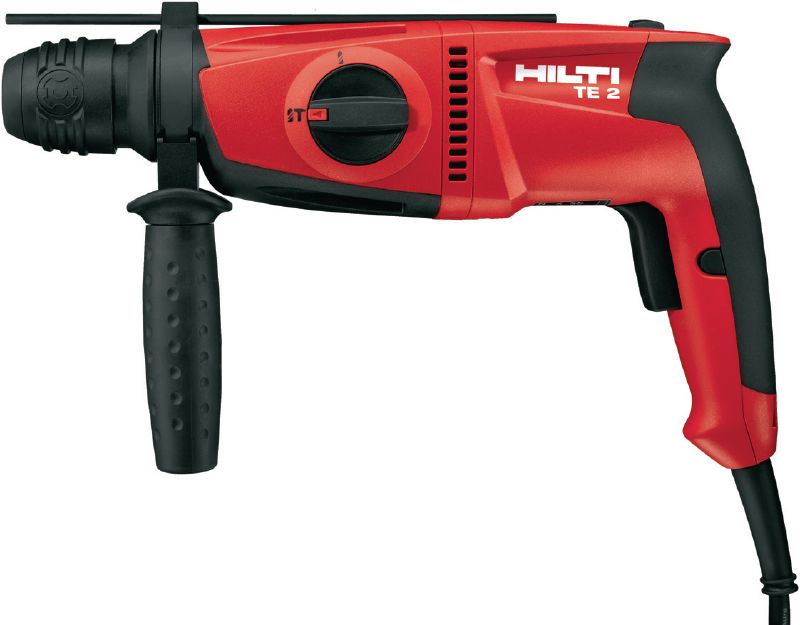

Compact dual-mode, pistol-grip SDS Plus (TE-C) rotary hammer – for hammer drilling and rotary-only drilling

  • Weight according to EPTA-Procedure 01/2003 without battery: 2.7 kg
  • Optimum hammer drilling range: 4 - 12 mm
  • Single impact energy: 1.8 J

Customers also searched for RotaryRotary HammerDrillAnchor Installation or Power tool.

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
2.7 kg
Optimum hammer drilling range
4 - 12 mm
Single impact energy
1.8 J
Working mode
Hammer drilling, Drilling
Hammer drilling diameter range
4 - 22 mm
Hammer drilling RPM
1200 rpm
Full hammering frequency
4600 impacts/minute
Functionality
Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
12.1 m/s² 1
A-weighted emission sound pressure level
94 dB (A) 2
Dimensions (LxWxH)
352 x 89 x 203 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Features & Applications

Features

  • Two-mode SDS Plus (TE-C) rotary hammer – for hammer drilling and rotary-only drilling
  • Sturdy motor with high load rating for maximum reliability
  • Quick-change TE-C Click chuck and user-friendly selector switch for high working convenience
  • Electronic switch for precise hole-starting
  • 360° side handle adjusts easily for preference or for use in tight spaces

Applications

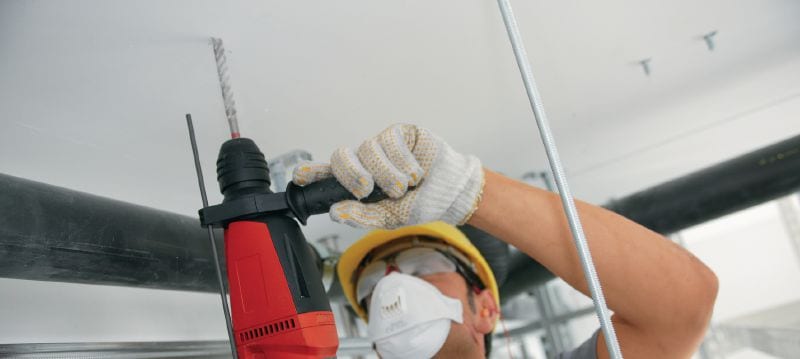

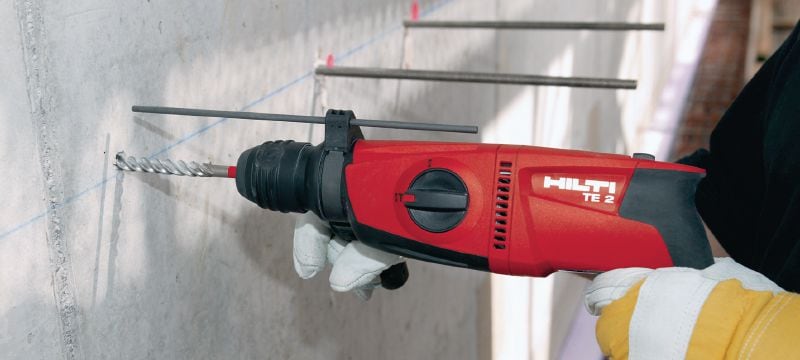

  • Everyday hammer drilling in concrete, masonry and natural stone

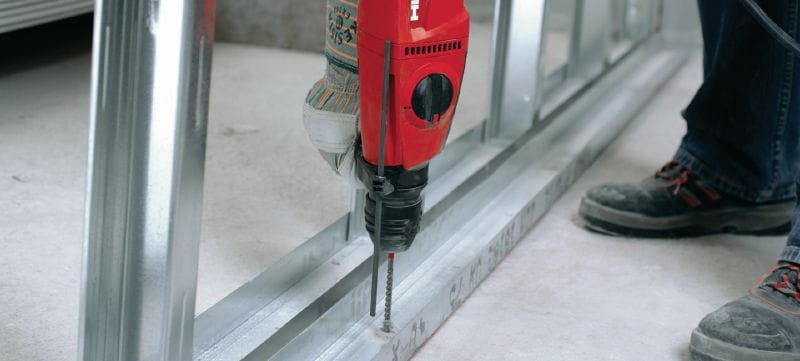

  • Occasional drilling in steel, wood and plastics using optional chuck adaptor
  • Driving screws using the optional bit holder
  • Reverse feature assists in the removal of stuck drill bits
  • Drilling in solid metal Ø 3-13 mm / sheet metal up to Ø 20 mm

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • Product warranty against parts and manufacturing irregularities for 20 years
  • After the no-cost period, repair costs are capped
  • 1-month no-cost period after each paid repair
  • Exclusive use of genuine Hilti spare parts
