PROFIS Installation

With Hilti PROFIS Installation design software and apps, you can design complex applications without expert knowledge and advice.

The comprehensive capabilities include designing supports for pipes, air ducts and cable trays.

Extraordinary real-world global building projects were designed with Hilti PROFIS Installation design software. Most notably, the Shard, the tallest building in Europe.

With Hilti PROFIS Installation design software, you can:

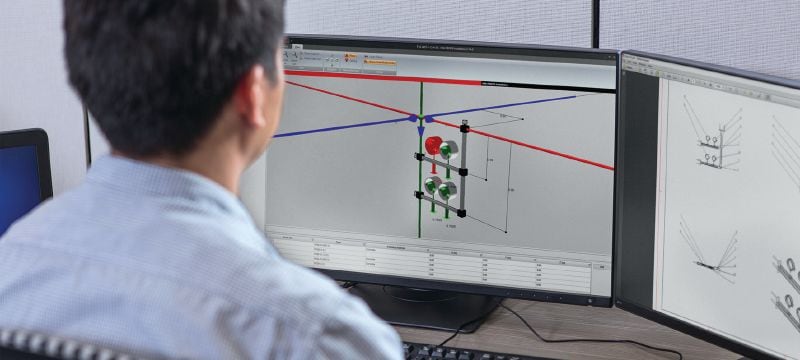

• Customize your own design in a 3D editor from scratch or use our template design module to select a design from a wide range of common applications. You can attach your own elements to your design in both design modes.
• Create sophisticated reports, with detailed structural analysis, showing the displacement, base plate geometry and anchor evaluation of your application – all useful to check your design is safe and ready for inspection.
• Have confidence that Hilti PROFIS Installation is integrated into our Hilti products, technologies and engineering backup services – to give you an end-to-end solution from design, construction to building operation.
• Evaluate the most suitable and optimized solutions for your build, based on decades of Hilti research and expertise in modular support systems.

Channel Design

• Calculate all installation channels or brackets
• Simple click and input functionality
• Find the most economical channel or bracket from our Hilti portfolio

Template Design

• Pre-designed template database for all channel systems
• Simple click and input functionality
• Get a static report on how to use our Hilti connectors and channels
• Get a bill of material including installation instructions

Fixed Point Design

• Calculate expansion solutions: bending arm, U-bend, axial expansion joint
• Find the most economical Hilti fixpoint solution
• Get a bill of material including installation instructions

3D Design

• 3D static system modelling and analysis
• Customized design
• Get a static report on how to use Hilti connectors and channels
• Get a bill of material including installation instruction

Seismic Design

• Pre-designed template database for seismic applications including how to use seismic installation parts
• Includes calculation and load cases based on seismic codes
• Get a bill of material including installation instruction
• Get a static report on how to use Hilti connectors and channels
