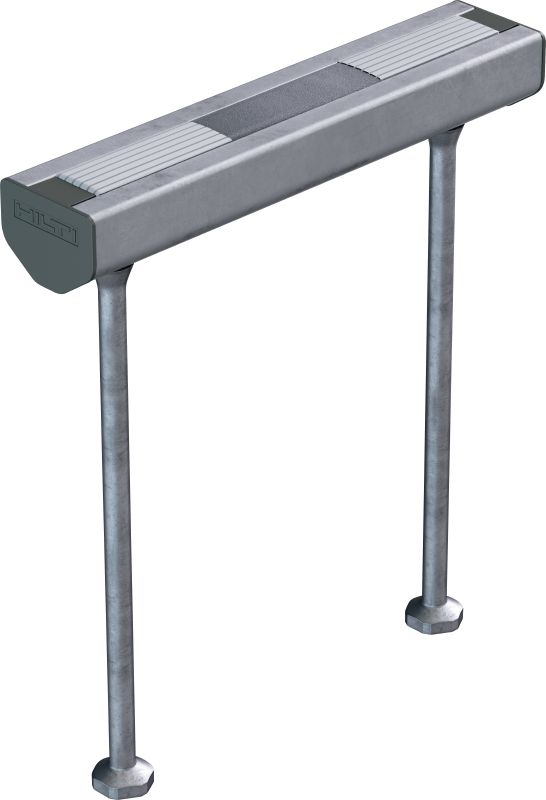

Standard HAC-V Anchor channel
Cast-in anchor channels with upgraded load capacity and multiple embedment depths for economical fastening of curtain wall façades
- Material, corrosion: Carbon Steel, Hot-Dip Galvanised
- PROFIS software: Yes
Technical Data
Material, corrosion
Carbon Steel, Hot-Dip Galvanised
PROFIS software
Yes
Documents
Features & Applications
Features
- Upgraded performance – tension resistance up to 20% higher than previous HAC anchor channels
- More economical – higher load capacity and multiple embedment depth options so you can use smaller cast-in channels as needed
- Engineering support available – use PROFIS Anchor Channel software to streamline the design process, or contact your local Hilti team for project-specific advice
- Faster on-site – automate setting T bolts by using the Hilti Adaptive Torque system, helping you improve consistency and save time when setting hundreds of holts
- ETA and ICC-ES approval documents for static, fatigue, seismic (ICC-ESR 3520) and fire loading available
Applications
- Fastening curtain wall façades in concrete slabs
- Fastening in elevator shafts, such as fixing guiderails, sliding doors or divider beams
- Fastening overhead MEP installations and equipment
- Fastening building appliances (e.g. ventilation, heating)
For approval or certificate information, please see individual items.
