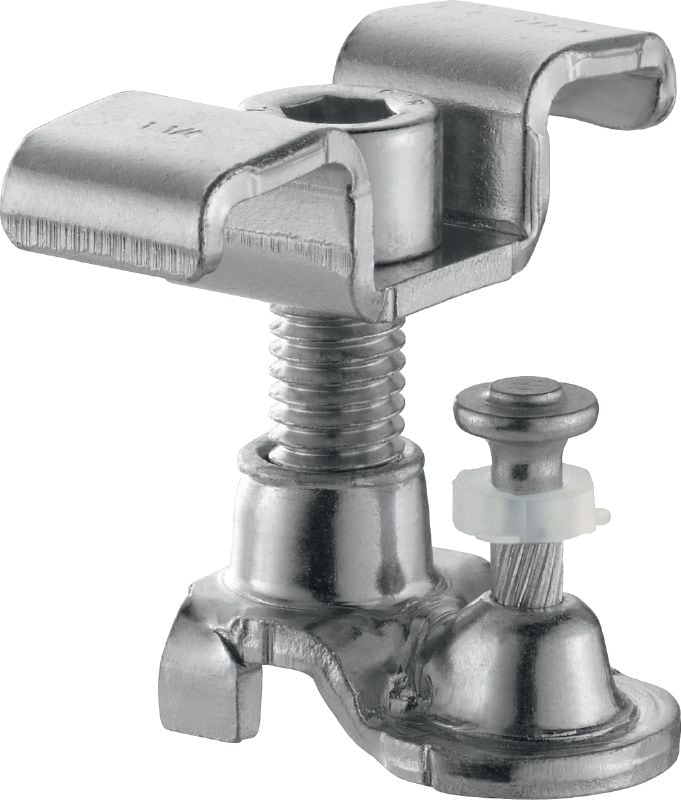

X-GR Grating clip with nail
Directly fastened grating fastener
- Application: Grating
- Approvals: ITB
- For use with (tools): DX 460, DX 5, DX 6
premium
Customers also searched for Gratings.
Technical Data
Application
Grating
Approvals
ITB
For use with (tools)
DX 460, DX 5, DX 6
Corrosion protection
Duplex coating, equivalent to 45 µm hot-dip galvanised
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor temporary applications, Outdoor with low pollution, Outdoor with moderate concentration of pollution
Minimum thickness of base material (steel)
4 mm
Product class
Premium
Documents
Features & Applications
Features

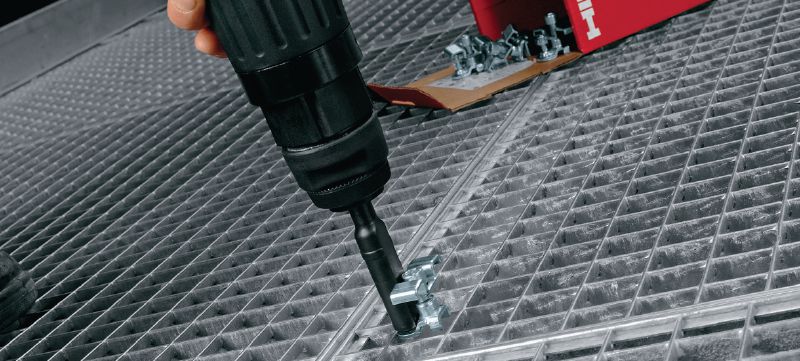

- Preassembled saddle for increased productivity – up to 120 fasteners per hour by one user with the fully automatic DX 460-GR nailer
- Two support legs provide 90° fastening for high application limit
- High productivity – can help to significantly reduce time and costs overall
- Duplex coating for greater corrosion protection
- Removable fastener suitable for various grating heights
Applications

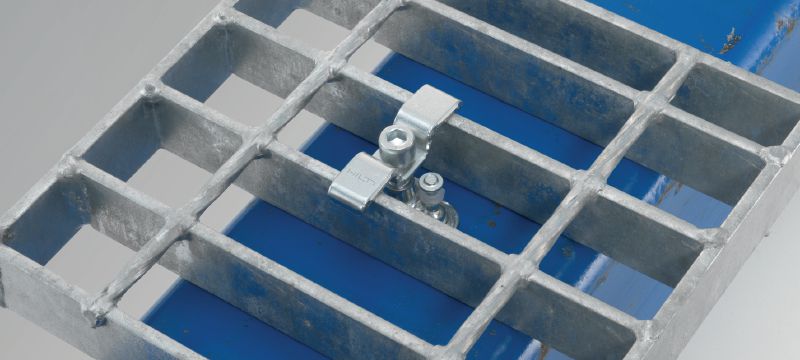

- Fastening grating to steel structures in mildly corrosive environments
For approval or certificate information, please see individual items.
