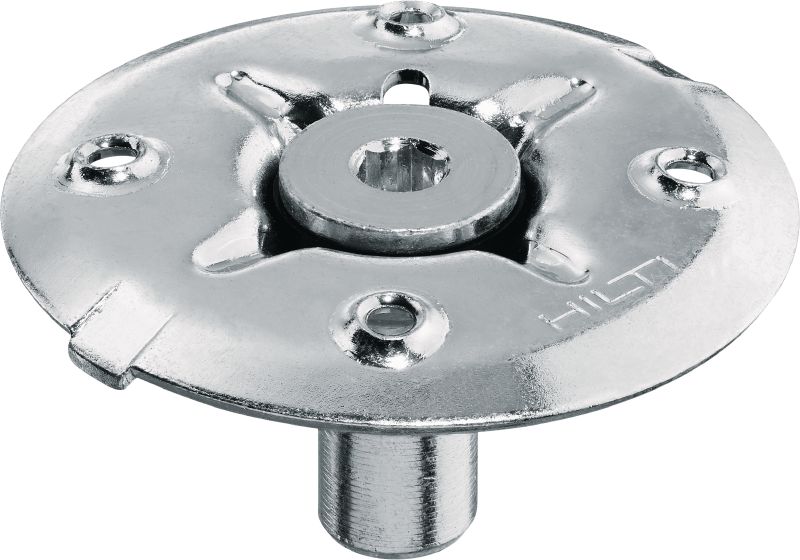

X-FCM Grating fastener disc (zinc coated)

Zinc coated grating fastener disc for fixing floor grates with threaded studs in low corrosion environments

  • Application: Grating
  • Approvals: ABS, LR
  • For use with (tools): BX 3, DX 351
ultimate

Technical Data

Application
Grating
Approvals
ABS, LR
For use with (tools)
BX 3, DX 351
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor, Indoor with temporary condensation
Minimum thickness of base material (steel)
6 mm
Product class
Ultimate

Documents

Features & Applications

Features

  • Labour-saving grating installation – fewer steps than traditional grating clamps and welding
  • Approvals and certificates – technical data, test reports and approvals available
  • No surface rework needed – when fastening grating to steel with S-BT and X-BT threaded studs
  • Durable hold – locking tabs on the disc help to prevent loosening or spinning
  • Reduce trip hazards – non-slip surface and minimized protrusion on walkway gratings when correctly installed

Applications

  • Fastening grating to steel in low corrosion C1 environments, such as dry and indoor locations
  • For gratings exposed to standard loads such as walkways
  • Fastening steel grating
  • Fastening fiber-reinforced plastic (FRP) grating
  • Grating fastener disc for use with M8 threaded studs

For approval or certificate information, please see individual items.
