HSC-AR Shallow undercut anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
5945.tif
Anchors
HSC-AR
HSC-AR
6108.tif
6265.tif

Ultimate-performance shallow undercut anchor (stainless steel, external thread)

  • Material, corrosion: Stainless steel, A4
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA, Fire

Customers also searched for Undercut anchor, Heavy duty, Short embedment depth, heavy duty stainless steel anchors or heavy duty SS undercut anchors.

Choose options

Anchor size
  • M8
  • M10
Standard embedment depth
  • 40 mm
  • 50 mm
Max. fixture thickness at standard embedment depth
  • 15 mm
  • 20 mm
Pack size
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From RM1,885.00

Technical Data

Material, corrosion
Stainless steel, A4
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire
PROFIS software
Yes
Type of fastening
Pre-fastening

Documents

Technical information
Approval document
Brochure
Instruction for use
pdf Technical data sheet for the HSC safety anchor, English [ 966.2 KB ]

Features & Applications

Features

  • Shallow embedment depth for thin concrete slabs or where permissible drilling depth is limited
  • Combines high working loads with small edge distances and close spacing thanks to very low expansion forces
  • Self-undercutting facilitates fast and reliable installation – no separate undercutting tool or handling needed
  • The resulting keying effect keeps the anchor secure even in cracked concrete under shock loads
  • Requires a plain cylindrical drilled hole, no separate undercutting operation

Applications

  • Safety-relevant, medium-duty fastenings in cracked or uncracked concrete and corrosive environments, especially where shallow embedment and/or small edge distance or close spacing is required

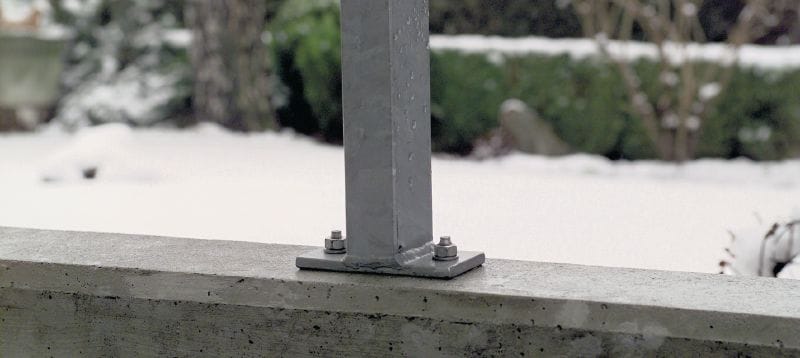

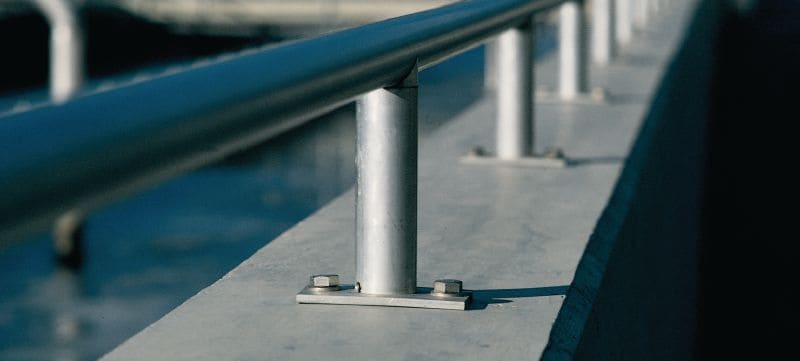

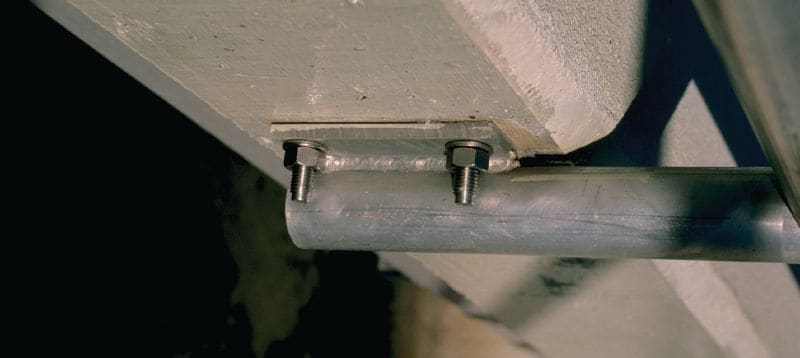

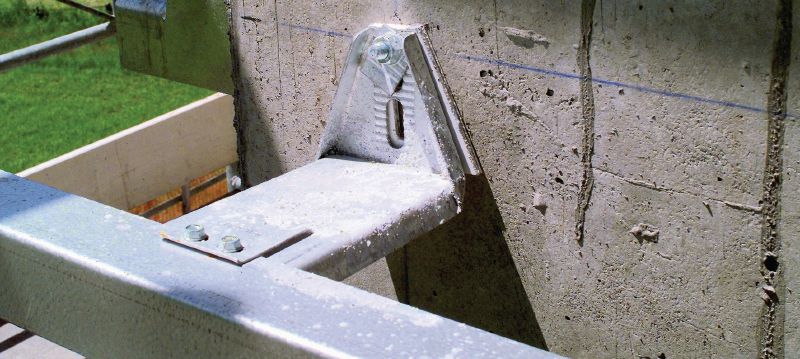

  • Examples: stair hand rails, balcony safety railings, sprinkler pipes, air ducts, seating, facade substructures, car park barriers, etc.

For approval or certificate information, please see individual items.
