HSC-I Shallow undercut anchor
Safety anchor HSC-I M10x50 #31144
Ultimate-performance shallow undercut anchor (carbon steel, internal thread)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Inner thread
- Approvals / test reports: ETA, Fire
Customers also searched for Undercut anchor, Heavy duty, Short embedment depth, heavy duty internally threaded anchors or heavy duty wedge anchors.
Choose options
Anchor size
- M10
Standard embedment depth
- 50 mm
Pack size
- 25 pc
Quantity
Packs
Total Piece
25
Discounted net
RM1,067.50
RM42.70 / 1 Piece
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Inner thread
Approvals / test reports
ETA, Fire
PROFIS software
Yes
Documents
Features & Applications
Features
- Shallow embedment depth for thin concrete slabs or where permissible drilling depth is limited
- Combines high working loads with small edge distances and close spacing thanks to very low expansion forces
- Self-undercutting facilitates fast and reliable installation – no separate undercutting tool or handling needed
- The resulting keying effect keeps the anchor secure even in cracked concrete under shock loads
- Requires a plain cylindrical drilled hole, no separate undercutting operation
Applications
- Safety-relevant, medium-duty fastenings in cracked or uncracked concrete, especially where shallow embedment and/or small edge distance or close spacing is required

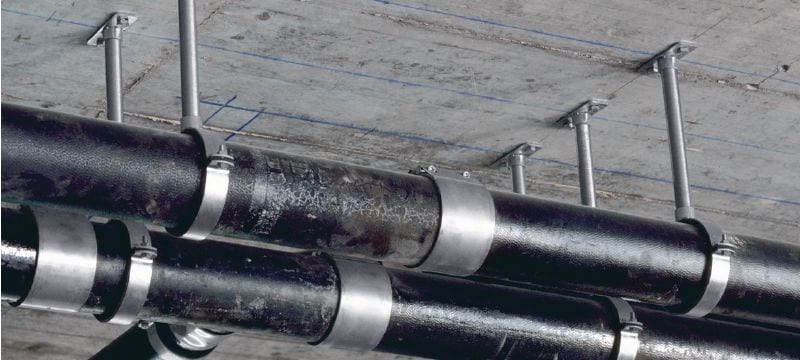

- Examples: stair hand rails, sprinkler pipes, air ducts, seating, facade substructures, car park barriers, etc.
