HDA-TF Undercut anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
7426.tif
L023465.tif
HDA-PF, HDA-TF
HDA
HDA
Mechanical treatment: Screening building More waste water treatment. More Hilti quality inside. adapted

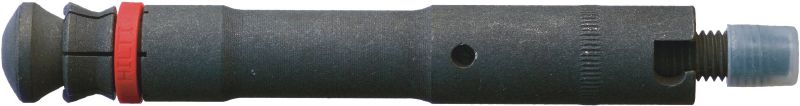

Ultimate-performance through-set undercut anchor for dynamic loads (sherardised steel)

  • Material, corrosion: Carbon steel, HDG (hot-dip galvanised)/sherardised
  • Head configuration: Externally threaded
  • PROFIS software: No

Customers also searched for Undercut anchor or Heavy duty.

Choose options

Anchor size
  • M10
  • M12
  • M16
Standard embedment depth
  • 100 mm
  • 125 mm
  • 190 mm
Max. fixture thickness at standard embedment depth
  • 20 mm
  • 40 mm
  • 50 mm
  • 60 mm
Pack size
  • 4 pc
  • 8 pc
  • 12 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From RM2,240.00

Technical Data

Material, corrosion
Carbon steel, HDG (hot-dip galvanised)/sherardised
Head configuration
Externally threaded
PROFIS software
No
Type of fastening
Through-fastening

Documents

Technical information
Approval document
Brochure
Sustainability Documentation
Operating Instruction
pdf Technical data sheet for the HDA design anchor, English [ 1.3 MB ]
pdf HDA-TF FTM 2015, English [ 2.9 MB ]
pdf AU PDS AM HDA design undercut anchor, English [ 2.7 MB ]

Features & Applications

Features

  • Combines the advantages of a post-installed mechanical anchor, i.e. flexibility and immediate loading, with the performance of a cast-in-place headed stud
  • Close spacing and small edge distances thanks to very low expansion forces
  • Self-undercutting facilitates fast and reliable installation – no separate undercutting tool or handling needed
  • The resulting keying effect helps to provide a secure hold in cracked concrete under dynamic loading
  • Manufactured under the NQA-1 nuclear quality program

Applications

  • Safety-relevant, heavy-duty fastenings for all dynamic loading in cracked or uncracked concrete, including applications in nuclear power plants
  • Examples: supports for heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fastening points, elevator tracks, bridge retrofitting etc.

For approval or certificate information, please see individual items.
