HST3-R Stainless steel wedge anchor

Stud anchor HST3-R M10x110 50/30 #2105866

Configurator
Technical Data
Documents
Features & Applications
Related Products
HST3-R M12x115 40/20
HST3 (76002)
5969.tif
77575.tif
HST3 (74487)
HST3 (74484)

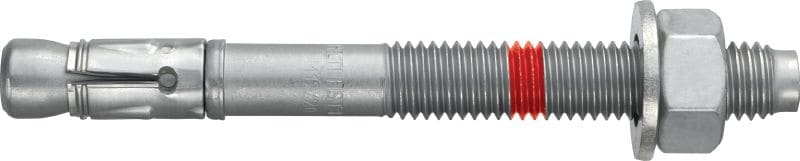

Ultimate-performance wedge anchor for demanding static and seismic loads in cracked concrete (A4 stainless steel)

  • Material, corrosion: Stainless steel, A4
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA, Fire, Seismic

Customers also searched for Stud anchor, Wedge anchor, Heavy duty, Cracked concrete or Stainless steel.

Choose options

Anchor size
  • M10
Anchor length
  • 110 mm
Pack size
  • 40 pc
 Product options
Quantity
Packs
Total Pieces
40
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
RM1,864.00
RM46.60
/
1 Piece

Technical Data

Material, corrosion
Stainless steel, A4
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire, Seismic
PROFIS software
Yes

Documents

Technical information
Approval document
Brochure
Sustainability Documentation
Operating Instruction
pdf Technical data sheet for the HST3 metal expansion anchor, English [ 1.7 MB ]
pdf White paper Ungrouted stand-off base plates EU [ 1.2 MB ]
pdf White Paper Grouted stand-off base plates EU, English [ 894.9 KB ]
pdf White paper Anchor On-site Testing, English [ 1.2 MB ]
pdf White Paper Tips & Tricks On-site Anchor Testing, English [ 1.5 MB ]

Features & Applications

Features

  • More economical, optimized anchor designs – larger range of embedment depths available and flexible edge and spacing, making more economical designs using smaller baseplates and façade brackets a possibility
  • Faster and easier to install correctly –requires no hole cleaning (M8-M20) and ready for automated pre-tensioning with a Hilti Adaptive Torque tool (M8-M16)
  • Design support available – use PROFIS Engineering Suite to simplify steel-to-concrete connection design, or contact your local Hilti Engineering Team for advice on more complex projects
  • Easier inspections – head marking showing anchor type and length to simplify quality control after setting

Applications

  • Stainless steel wedge anchor for all safety-relevant fastenings in cracked and uncracked concrete in corrosive environments
  • All safety-relevant fastenings in seismic loading conditions, category C1 for non-structural elements and category C2 for structural elements

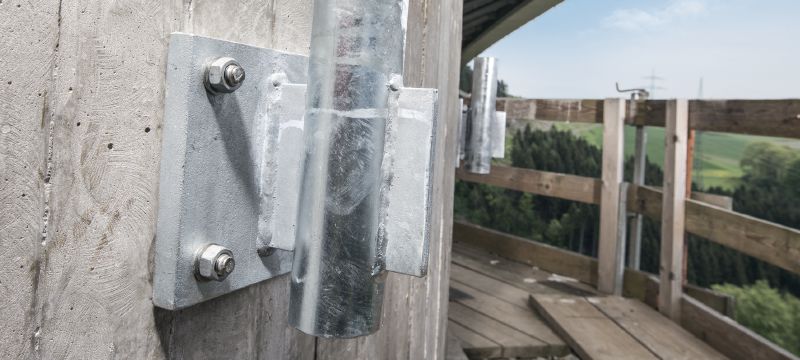

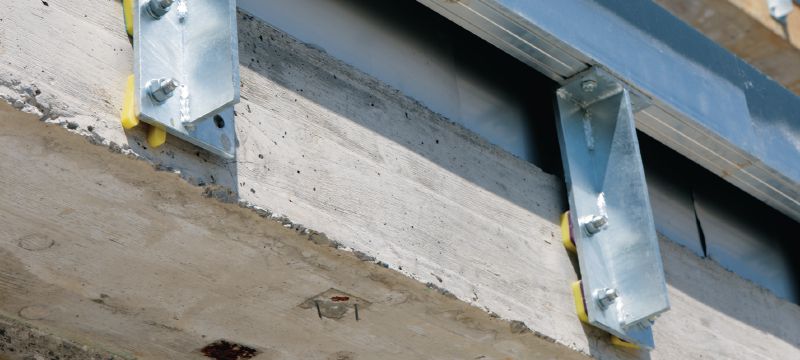

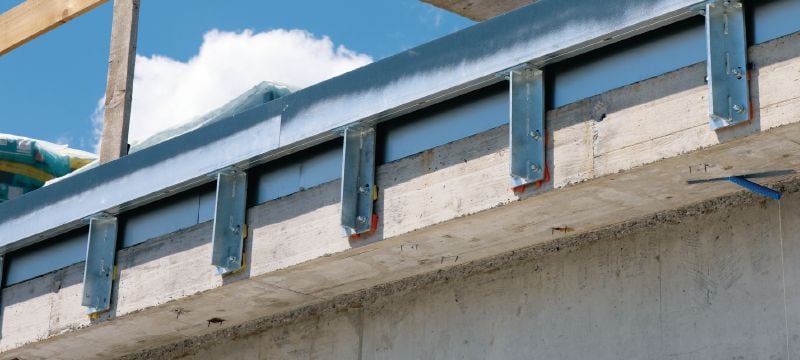

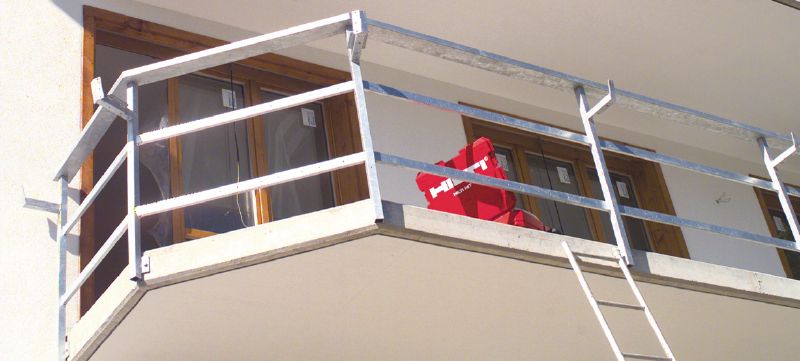

  • Fastening baseplates, handrails, façade systems, machinery or racking to concrete when corrosion resistance is required
  • Suitable for use in corrosive environments
