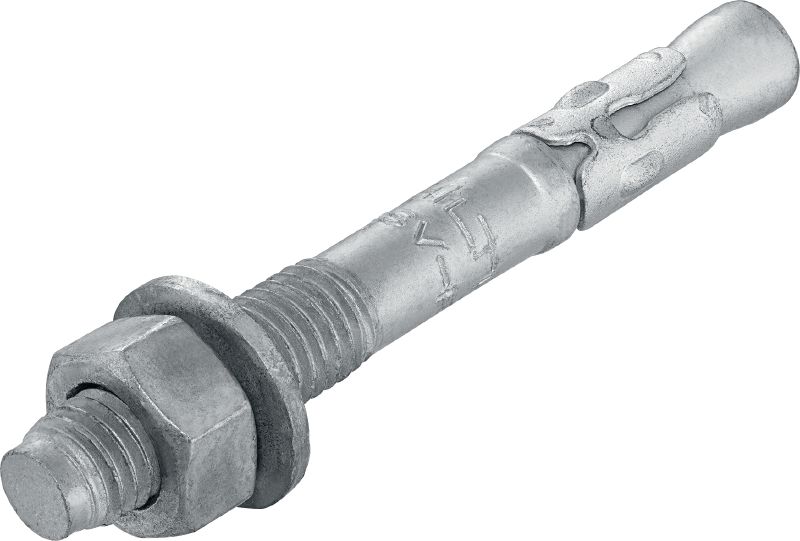

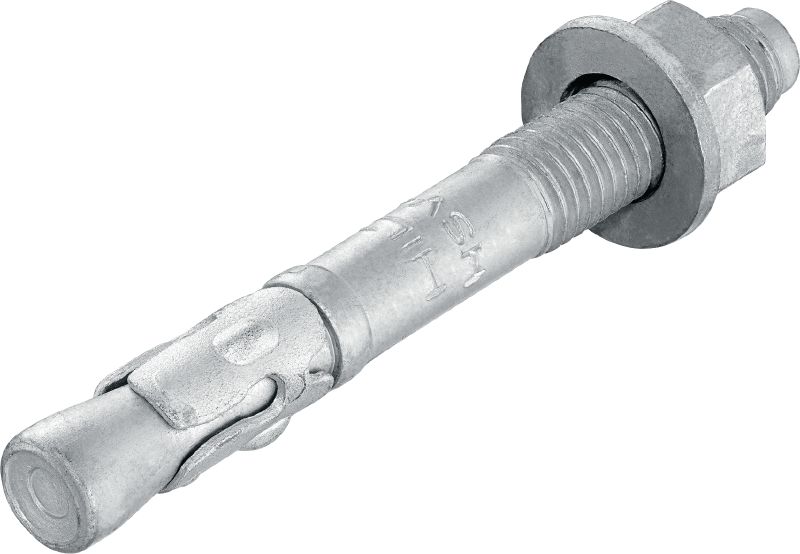

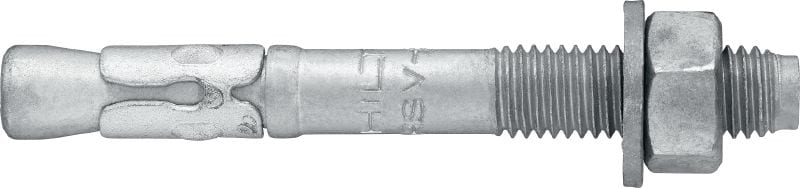

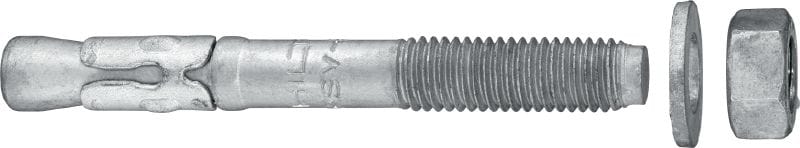

HSV-F Wedge anchor

Configurator
Technical Data
Features & Applications
Related Products
HSV-F (78034)
HSV-F (78036)
HSV-F (78035)
HSV-F (78037)
Kwik bolt, HSA
HSA stud anchor (Segmentanker)
Kwik bolt, HSA
Kwik Bolt, HSA
5943.tif

Economical wedge anchor for static loads in uncracked concrete (hot-dip galvanised)

  • Material, corrosion: Carbon steel, HDG (hot-dip galvanised)/sherardised
  • Head configuration: Externally threaded
  • Type of fastening: as

Customers also searched for Stud anchor, Wedge anchor or Hot-dipped.

Choose options

Anchor size
  • M10
  • M12
  • M16
Anchor length
  • 90 mm
  • 100 mm
  • 120 mm
  • 140 mm
Pack size
  • 50 pc
  • 100 pc
  • 120 pc
  • 150 pc
  • 200 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From RM700.00

Technical Data

Material, corrosion
Carbon steel, HDG (hot-dip galvanised)/sherardised
Head configuration
Externally threaded
Type of fastening
as
PROFIS software
No
Environmental conditions
Indoor with temporary condensation

Features & Applications

Features

  • Made from cold-formed carbon steel, hot-dip galvanised to min. 42 um
  • Two embedment depths for a wide range of fastening thicknesses
  • Raised impact section prevents thread damage during installation
  • Pre-assembled to save time

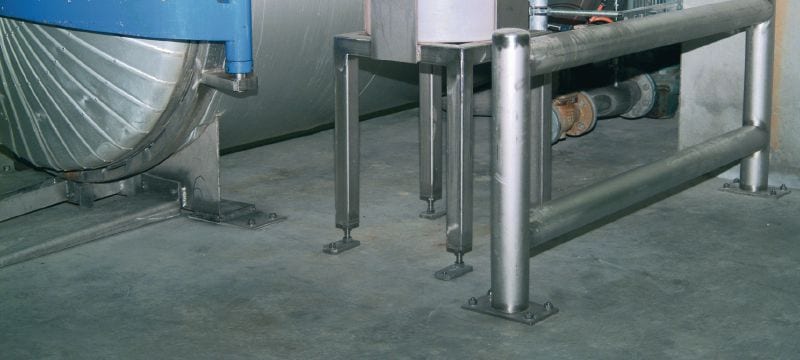

Applications

  • Wide range of fastening applications in uncracked concrete
  • Fastening brackets and channels
  • Fastening columns and beams

For approval or certificate information, please see individual items.
