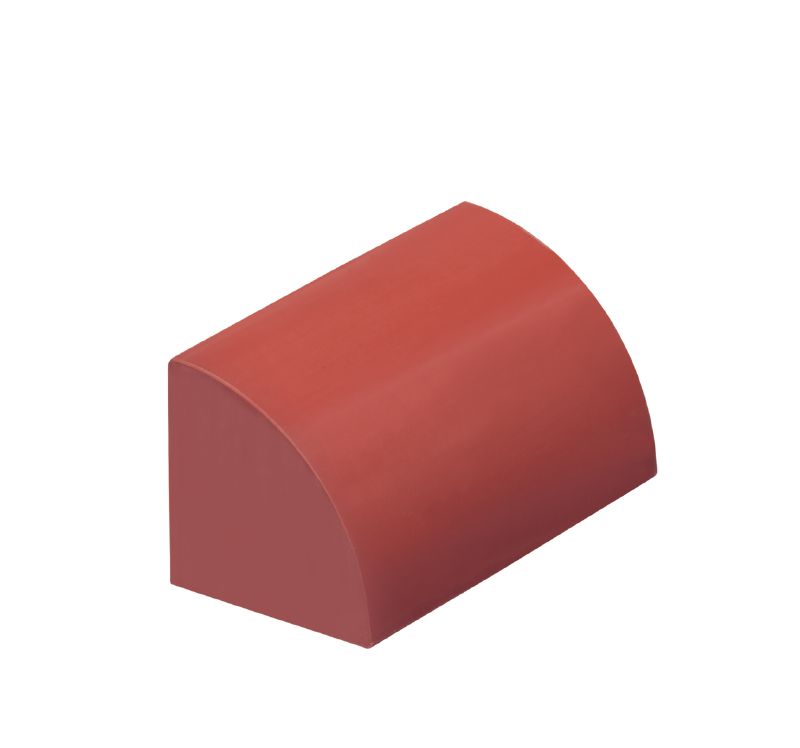

CFS-T FB filler module
Filler modules for sealing unused space within transit frames when high water- and gas-tightness and fire-resistance are required
- Approvals: UL
- Storage and transportation temperature range: 5 - 25 °C
- Temperature resistance range: -40 - 50 °C
Choose options
Module height
- 5 mm
- 30 mm
- 60 mm
Base materials
- Concrete, Steel
Pack size
- 4 pc
- 24 pc
- 36 pc
Quantity
Packs
Total Pieces
1
Discounted net
From RM354.40
Technical Data
Approvals
UL
Storage and transportation temperature range
5 - 25 °C
Temperature resistance range
-40 - 50 °C
Free from
Halogen (halogen content <= 0.1 weight %)
Application temperature range
50 - -20 °C
Reaction to fire class (EN 13501-1)
E
Documents
Features & Applications
Features
- Placeholder for future cable installations
- Filler modules are supplied as one perforated block and can be easily separated for individual use
Applications
- Penetrations in shipbuilding and offshore applications
- Penetrations in wind power structures
- Telecom, data centre, downstream (oil and gas), petrochemical, control rooms, health care, emergency power, transmission towers
For approval or certificate information, please see individual items.
