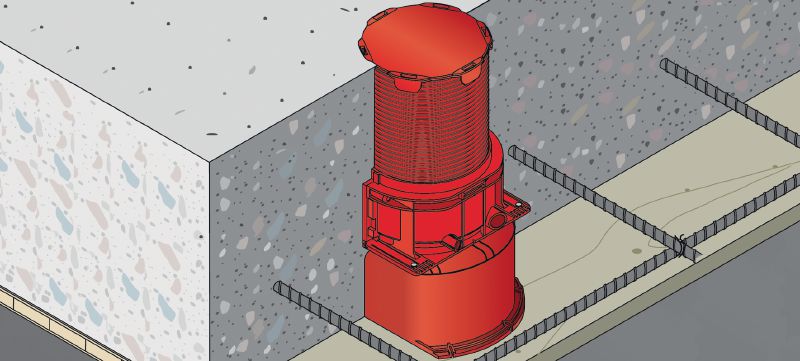

One-step firestop cast-in sleeve for plastic pipe penetrations through floors. Place it and forget it

  • Approvals: UL
  • Height: 8 in
  • Base materials: Concrete, Concrete over metal deck
ultimate

Technical Data

Approvals
UL
Height
8 in
Base materials
Concrete, Concrete over metal deck
LEED VOC
1.4 g/l
W-rating
Yes, with W-rating module
Application temperature range
-5 - 50 °C
Product class
Ultimate

Documents

Features & Applications

Features

  • Quicker and simpler installation – designed to increase your productivity and reduce labour costs
  • Cast-in device allows attachment of modular accessories to cover all the requirements at your jobsite (slab thickness, W-rating, etc.)
  • Peace of mind – cast-in devices remove scope for errors compared to traditional methods, leading to more reliable firestopping of vertical penetrations
  • Creates an opening with the firestop already included – no coring or coming back for firestopping required
  • Integrated moisture and smoke seal – no additional backfilling required

Applications

  • Concrete slabs built with traditional formwork or metal decking
  • New building construction
  • Sealing combustible penetrations
  • Concrete floor assemblies rated up to 4 hours
  • Adaptable for thicker decks (standard height 8")

For approval or certificate information, please see individual items.
