MT-BR-40 OC bracket

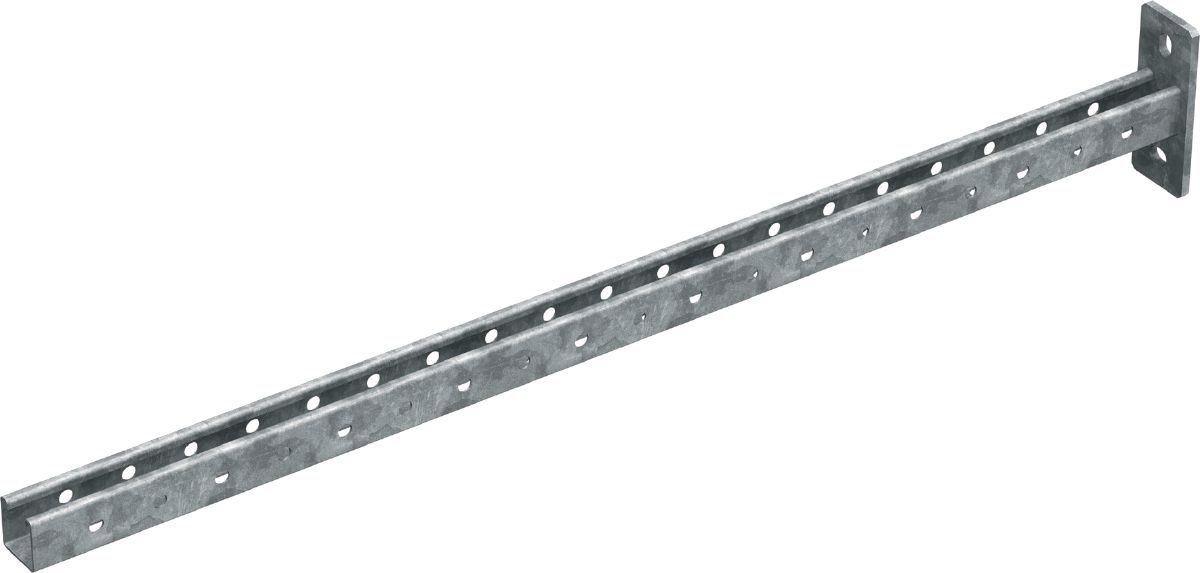

Bracket MT-BR-40 1000 OC Product number: 2271447

medium-duty C-Channel bracket for outdoor applications

Material composition: Q235 or better steel
Surface finish: Outdoor Coating
Material thickness: 8 mm

Choose options

Length - L

300 mm
450 mm
600 mm
1000 mm

Pack size

10 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

RM2,450.00

RM245.00

1 Piece

Technical Data

Material composition

Q235 or better steel

Surface finish

Outdoor Coating

Material thickness

8 mm

Weight

3 kg

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Length - L

1000 mm

Documents

pdf ETA-23-0106 Static Fire MT Cantilevers [ 2.9 MB ]

Download

Features & Applications

Features

Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
Easy to instal – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
Adjustable – two slotted holes simplify leveling and fine adjustment
Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

Supporting pipe rings, ventilation ducts, cable trays and other MEP support hardware
Mounting light-duty MEP installations on concrete and steel
Suitable for use in moderately corrosive environments
