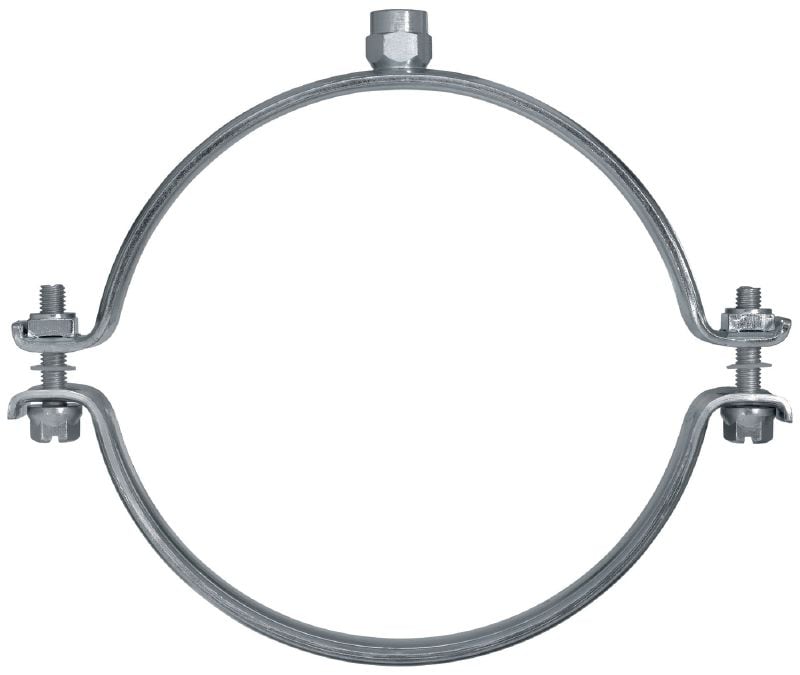

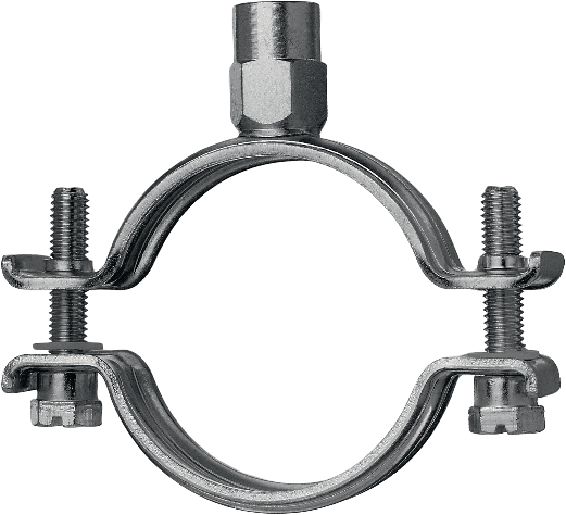

MP-MS Sprinkler pipe clamp

MP-MS Heavy-duty pipe ring
14811.tif
MP-M-C
28514_B_H_J.eps

Galvanised sprinkler pipe clamp with VdS, FM (M10) and UL (M10, M12) approvals for fire sprinkler applications

  • Material composition: S235JRG - DIN EN 10025
  • Surface finish: Indoor Coated - Electro galvanised
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Clamping range - D
  • 32 - 38 mm
  • 40 - 45 mm
  • 48 - 54 mm
  • 57 - 64 mm
  • 70 - 77 mm
  • 108 - 114 mm
  • 122 - 127 mm
  • 156 - 162 mm
Nominal pipe size (imperial)
  • 1 in
  • 1-1/4 in
  • 1-1/2 in
  • 2 in
  • 2-1/2 in
  • 4 in
Pack size
  • 5 pc
  • 10 pc
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From RM322.15

Technical Data

Material composition
S235JRG - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

pdf Pipe clamps selection Poster, English [ 1.4 MB ]

Features & Applications

Features

  • Swaged steel pipe clamp section for greater stiffness
  • Clamping screws (slotted hexagon head, M8) pre-attached to pipe clamp to help prevent loss
  • Sizes up to 2" equipped with M8/M10 flexible connection head
  • Sizes larger than 68/72 mm with solid, welded-on nuts for better mounting of clamping screws

Applications

  • Single-point fastening for fire sprinkler applications
  • Recommended for use in dry, interior environments
  • Pipe rings for use in dry interiors only

For approval or certificate information, please see individual items.
