MIC-T Connector

Connector MIC-T #304807

LCG002356_HDG_v1 (203006)
IS_HNA_316_o.eps
LCG001010.tiff
28657.eps
IS_HNA_316.eps

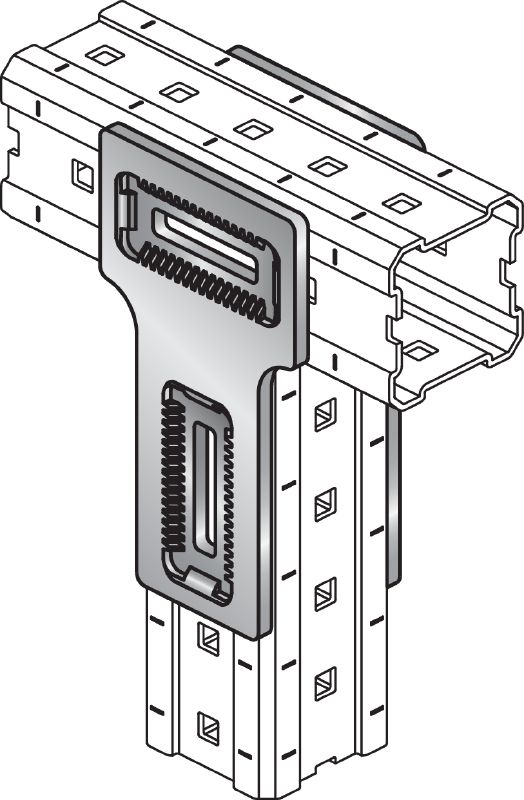

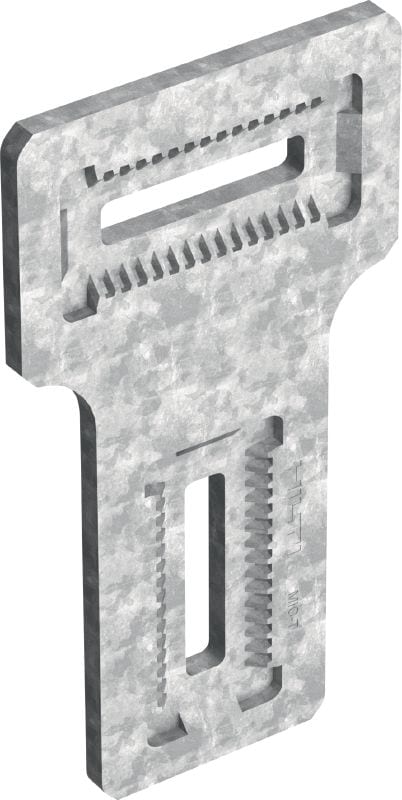

Hot-dip galvanised (HDG) connector for fastening MI girders perpendicularly to one another

  • Material composition: Connector: DD11 MOD - HN 547, S235JR - DIN EN 10025; toothed plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMW-450-7 - DIN EN 1562; bolt: 8.8 grade steel; nut: 8 grade steel
  • Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; toothed plate, bolt, nut 45 µm - DIN EN ISO 1461
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Choose options

Modular Girder Type
  • 90, 120
Pack size
  • 2 pc
 Product options
Quantity
Packs
Total Pieces
2
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
RM1,960.00
RM980.00
/
1 Piece

Technical Data

Material composition
Connector: DD11 MOD - HN 547, S235JR - DIN EN 10025; toothed plate: EN-GJMW-400-5 - DIN EN 1562, EN-GJMW-450-7 - DIN EN 1562; bolt: 8.8 grade steel; nut: 8 grade steel
Surface finish
HDG: connector 55 µm - DIN EN ISO 1461; toothed plate, bolt, nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

pdf Corrosion handbook, English [ 9.4 MB ]

Features & Applications

Features

  • Positive engagement for optimum transmission of forces and moments
  • Connector comes with self-locking nuts to help protect against vibration
  • Rigid extension for connection of MI girders
  • Designed for fast, one-person installation
  • No welding required – for faster, more efficient installation

Applications

  • Part of a modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel
  • Industrial and heavy commercial applications requiring an easy-to-install, adjustable, flexible solution that eliminates the need for welding
  • Pedestal connections
