MQN-C HDG plus

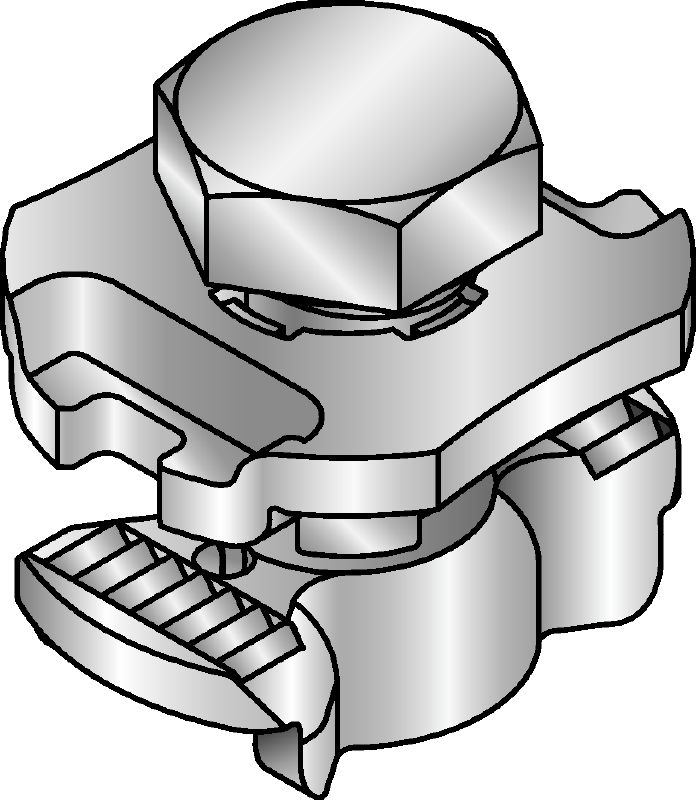

Channel connector MQN-C HDG #2184369

IS_MQN_C_0001 (187742)

Hot-dip galvanised (HDG plus) channel connector for joining any elements with a butterfly opening

  • Product class: Ultimate
  • Material composition: Plate: S380MC, Nut: S355MC - DIN EN 10149-2, Bolt: M10 grade 8.8 - DIN ISO 898
  • Surface finish: Outdoor Coated - HDG Plus
ultimate

Choose options

Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
50
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Product class
Ultimate
Material composition
Plate: S380MC, Nut: S355MC - DIN EN 10149-2, Bolt: M10 grade 8.8 - DIN ISO 898
Surface finish
Outdoor Coated - HDG Plus
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

pdf Operating Instruction MQN-C HDG Plus, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 1.9 MB ]

Features & Applications

Features

  • Extremely fast installation thanks to the unique push-only function
  • Designed to be simple, compact and time-saving
  • Holds securely once it has been pressed, turned and tightened correctly
  • Universal – one push button for all connectors and MQ channels
  • Spy-hole for visual control of nut position

Applications

  • Connecting angles to strut channels
  • Connection element for U-frame/crossbeam structures
  • Connecting strut channels and structural elements
  • Designed for a long lifetime in temperate outdoor climates
  • Connecting hot-dip galvanised MQ brackets, angles and bases to MQ profiles
