Posted by Tinagaran Ravi shankarover 2 years ago
Design anchor for slanting prop to prevent parapet wall from topple.
Parapet wall height of 1600mm, legth of 7760mm and thickness of 150mm need to be propped with slanting prop to prevent the wall from topple. The weight is 45kN. I want to design the bolt type and embedment depth using hilti profis but cant. pls help on this. Thank you.
1 Reply
Posted by Vincent Sooover 2 years ago
Hi Tinagaran Ravi Shankar!

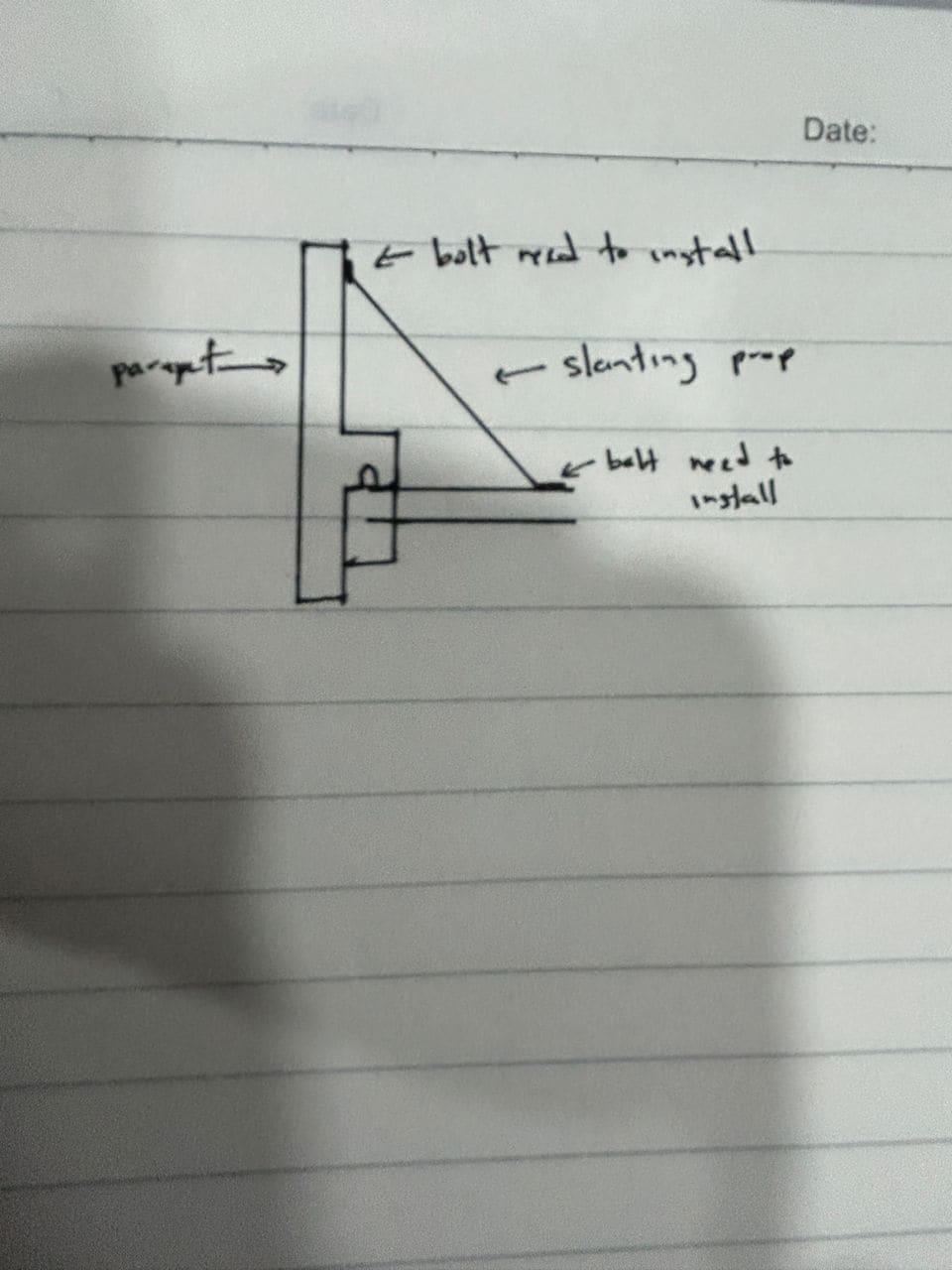

Thank you for your question and appreciate your sketch for greater understandings. We would be happy to be of help to your concerns and we would like to reach out to you to take up this matter.
Kindly drop us an email at my.engineering@hilti.com with your contacts and our engineering team member will reach out to you to assist.
Thanks!
-MY Engineering Team
