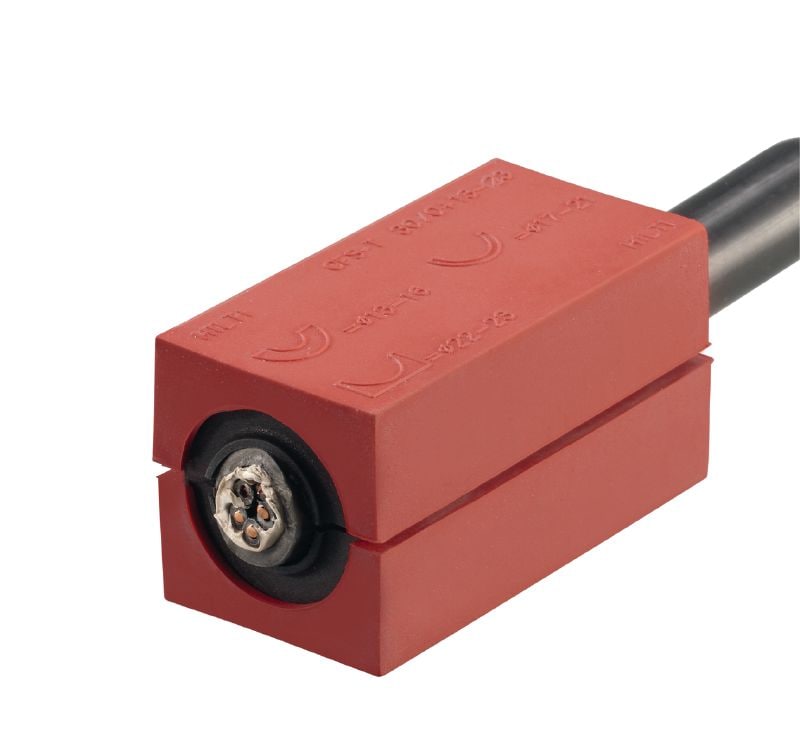

CFS-T cable module
Modules to seal cables/pipes within a transit frame when high water- and gas-tightness and fire-resistance are required
- Approvals: UL
- Storage and transportation temperature range: 5 - 25 °C
- Temperature resistance range: -40 - 50 °C
Technical Data
Approvals
UL
Storage and transportation temperature range
5 - 25 °C
Temperature resistance range
-40 - 50 °C
Free from
Halogen (halogen content <= 0.1 weight %)
Application temperature range
50 - -20 °C
Reaction to fire class (EN 13501-1)
E
Documents
Features & Applications
Features
- Simplified inventory management – only 7 different modules are needed to cover all cable diameters from 3 to 99 mm

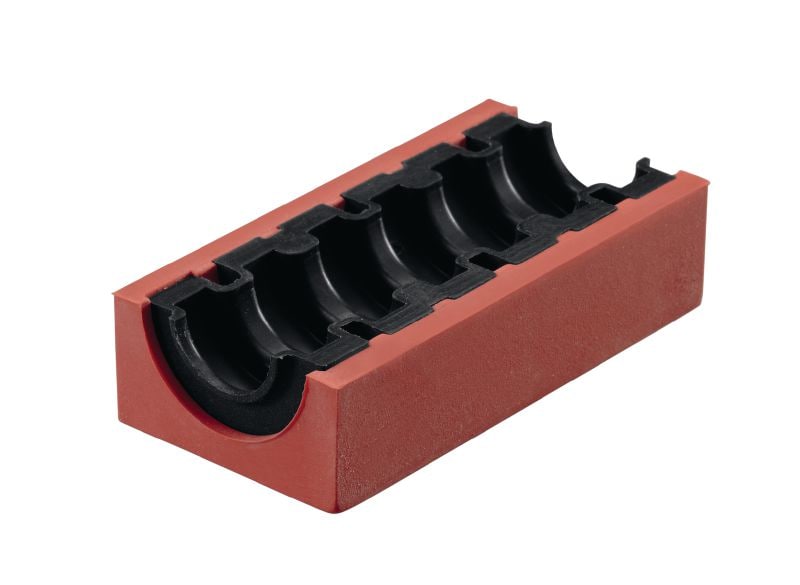

- Versatile adapter modules for quicker, easier accommodation of each cable diameter
- Time-saving installation thanks to module interlinking, especially where cables run vertically through deck/floor penetrations
- Colour-coded adapter system to make inspection easier and more reliable

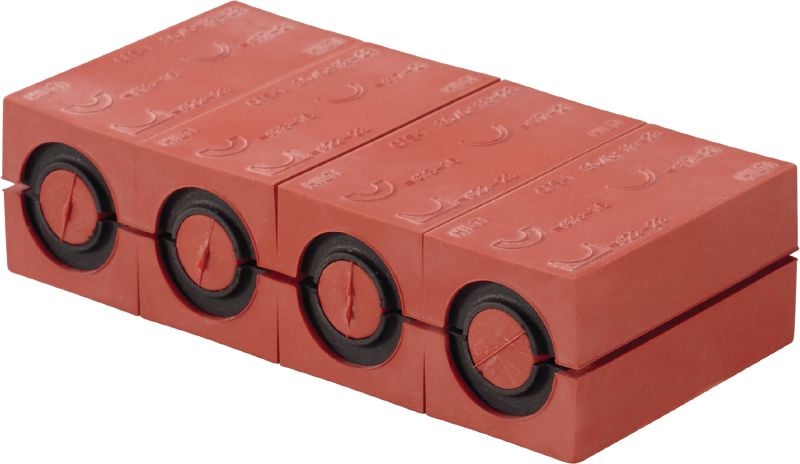

- Cable modules (up to size 40 mm) are supplied in a joined-together state and can be easily separated for individual use.
Applications
- Penetrations in shipbuilding and offshore applications
- Penetrations in wind power structures
- Telecom, data centre, downstream (oil and gas), petrochemical, control rooms, healthcare, emergency power and transmission towers
For approval or certificate information, please see individual items.
Related Products
Module squeezer to temporarily pre-compress cable modules, creating space to quickly and easily insert a compression wedge
Lubricant to grease all rubber module parts during assembly of transit modules and components
Filler modules for sealing unused space within transit frames when high water- and gas-tightness and fire-resistance are required
