DD 200 G02 (DD-ST 200) Core drill

DD 200, DD-ST 200 (79444)
DD 200, DD-ST 200 (79449)
DD 200 (DD-ST 200) (81172)
DD 200 (DD-ST 200) (81173)
DD 200 (81184)
DD 200, DD-ST 200 (79444)
DD 200, DD-ST 200 (79449)
DD 200 (DD-ST 200) (81172)
DD 200 (DD-ST 200) (81173)
DD 200 (81184)
DD 200 - Tough times. Toupher tool. (EN / 87341)

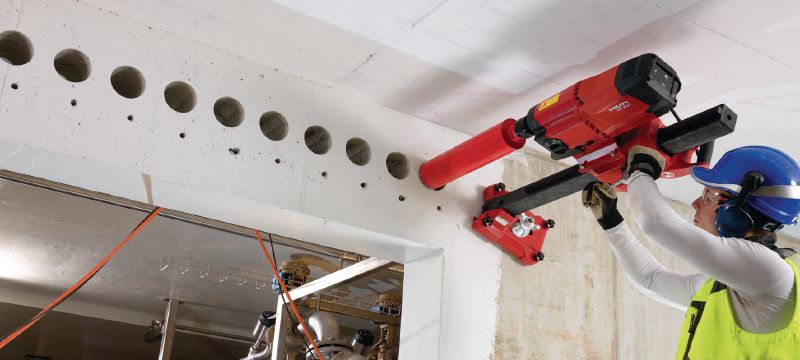

Simple heavy-duty diamond drilling tool for coring medium and large diameters up to 500 mm

  • Diameter range: 35 - 500 mm
  • Base material: Concrete
  • Operation mode: Rig-based drilling system

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From RM11,670.00

Technical Data

Diameter range
35 - 500 mm
Base material
Concrete
Operation mode
Rig-based drilling system
Number of gears
3
No load RPM
gear 1: 240 rpm; gear 2: 580 rpm; gear 3: 1160 rpm
Weight according to EPTA-Procedure 01/2003 without battery
20.4 kg
Weight of complete system
33 kg
Dimensions (LxWxH)
550 x 195 x 415 mm
A-weighted emission sound pressure level
93 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
2.5 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
HCL/HCS
Corner accessibility
50 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Air-cooled heavy-duty drive unit with three-speed gearing and convenient controls
  • Optional BL quick-release connection lets you change core bits in seconds - no tools required (keyless system)
  • Extremely sturdy, robust design
  • Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximise core bit life
  • Compatible with the sturdy and simple DD-ST 200 drilling stand, as well as many common, industry-standard drilling stands

Applications

  • Making penetrations for ducts, pipes and cables
  • Openings for ventilation
  • Stitch drilling for breaches
  • Coring holes for service entries
  • Coring holes in ceilings, walls and floors without hammering and vibration

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • Product warranty against parts and manufacturing irregularities for 20 years
  • After the no-cost period, repair costs are capped
  • 1-month no-cost period after each paid repair
More information about Tool Services
